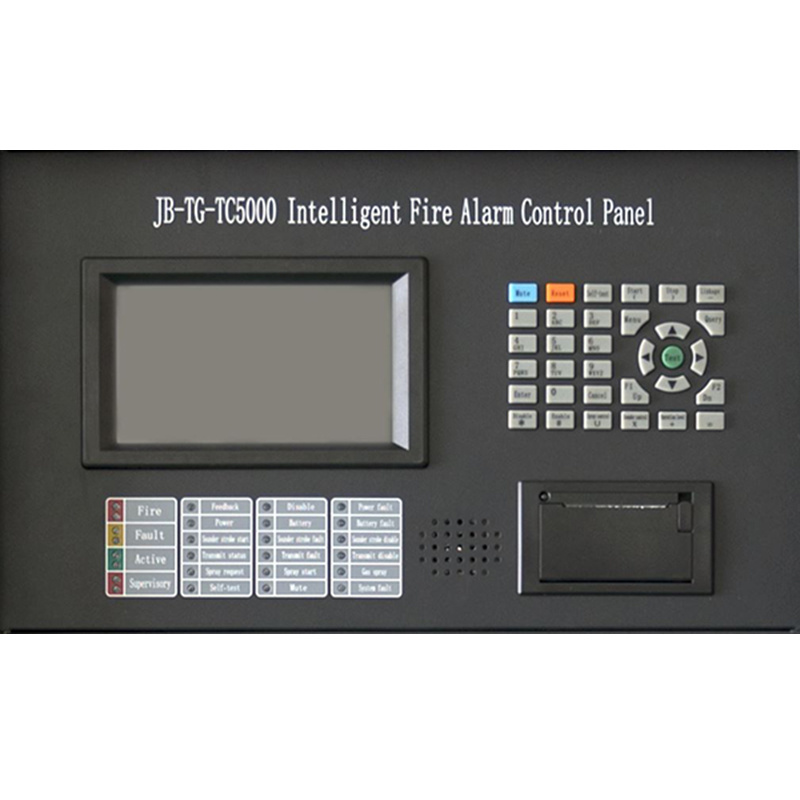

JB-TG-TC5000 Intelligent Fire Alarm Control Panel
Transportation: Ocean ，Air ，Train
Port: Dalian
Category
Keyword
Intelligent Fire Alarm Control Panel
- Description
-

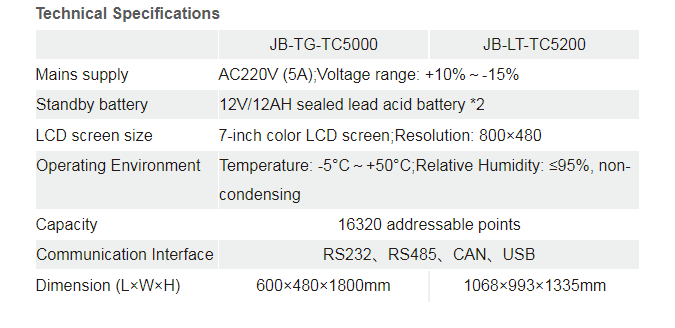

Model No.
Place Of Origin
Mains
Battery
LCD Screen Size
Operating Environment
Capacity
Communication Interface
Dimension (L XWxH)
Approval：JB-TG-TC5000
：China
：AC220V (5A);Voltage Range: + 10%~-15%
：12V/12AH sealed lead acid battery *2
：7- inch color LCD screen; R esolution: 800x480
：Temperature: -10°C~+50°C; Relative Humidity: <95%, non-condensing
：255- 16320 addressable points; 1-64 loops
：RS232, RS485, CAN, USB
：600mmx4 80mmX 1 800mm
：CCCF, CESelling Units
：Others
The control panel can be used with all kinds of intelligent fire detectors, input modules, output modules, I/O modules, sounder strobe, fire repeater etc. Forming an alarm linkage integrated control panel, which is the best choice for fire protection engineering.
* Color menu display
* Intelligent bus control, max 255 points per loop and max 64 loops
* Comprised of 32 pieces of 64-loop or 128-loop intelligent bus control panel
* Comprised of 32 pieces of two-wire or three-wire direct control panel
* Black box, with the optional function of“Set Top Box”
* Filter output has been applied to this control panel, including loop bus output, multi-wire output, power output, acousto-optic output and Fire Alarm relay output
* Independent controlling password for the specially needed gas recharging units
* Self-design loop protocol
Appearance: The control panel adopts Akzo anti-corrosion coating. No pun-gent smell, anti-static electricity, non-toxic harm, non-pollution, no waste. The cabinet is made of stainless steel, which is not easy to deform and high-end and elegance
The Control Panel Is Equipped With A Fire Alarm And A Fault Output Port. The Output Of 24V In Case Of Fire Al Arm And Fault Effectively Provides A Convenient Way For External Device
Power Box: Equipped With Main Power Supply Detec-Tion Function. Easily Achieved Switching Between The Main And Standby Power. Insurance Of Its Own Can Provide Protection To The Control Panel When The External Current Is Too High
Standby Battery: 12V/12Ah Battery *2, Work For 12 Hours Without Main Power, Work For 3 Hours Without Main Power And Alarm In The Loop. And The Battery Has Its Own Charging Function. Con-Trol Panel Is Exquisite And Beautiful.
