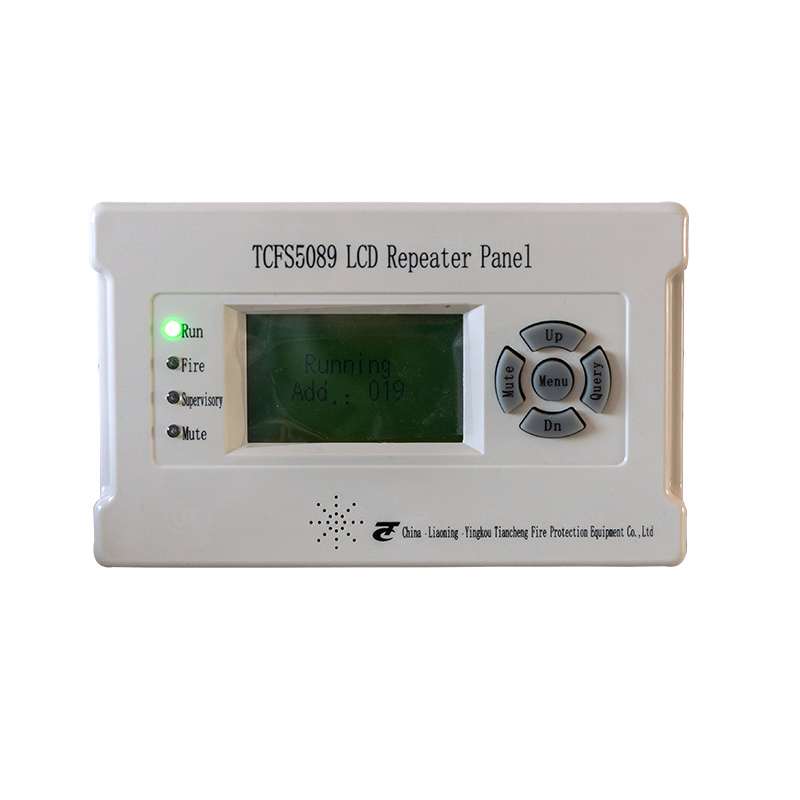

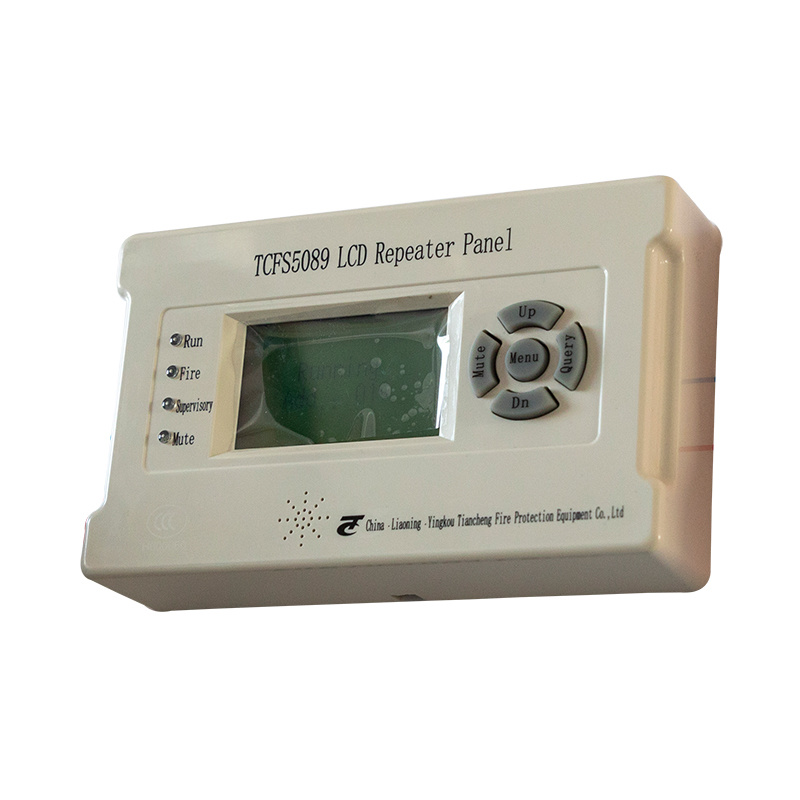

TCFS5089 Fire Repeater Display Panel
Transportation: Ocean ，Air ，Train
Port: Dalian
Category
Keyword
Fire Repeater Display Panel
- Description
-
Model No.
Place Of Origin：TCFS5089
：ChinaSelling Units
：Others
It is used to display the fire location and related information of a certain floor or fire zone, and at the same time send out an sounder strobe alarm signals to inform people in nearby areas.
* Display Fire Alarm position and information for certain floor or fire protection zone, give out audio and visual alarm signal to inform nearby personnel
* Max 12 TCFS5089 Fire Display Panel per loop
* Wiring: four bus system
* Display range: any 512 alarm points within nearby 5 loops on its locating loop mainboard
* Chinese comment display
* Dimension: 180mm× 110mm× 40mmVoltage
Loop : DC24V(16V-28V); Power: DC24V(20V-28V)
Current
Standby Current: loop:≤1.1 mA, Power: < 9mA;
Alarm Current: Loop: ≤2mA, Power:≤45mA
Operating Environment
Temperature: -10°C~+50°C; Relative Humidity:≤9 5%, non-condensing
Wiring
Four-wired
Dimension (LxWxH)
180mmX 110mmx40mm (with base)
Approval
CCCF, CE
Appearance: The control panel adopts Akzo anti-corrosion coating. No pun-gent smell, anti-static electricity, non-toxic harm, non-pollution, no waste. The cabinet is made of stainless steel, which is not easy to deform and high-end and elegance
The Control Panel Is Equipped With A Fire Alarm And A Fault Output Port. The Output Of 24V In Case Of Fire Al Arm And Fault Effectively Provides A Convenient Way For External Device
Power Box: Equipped With Main Power Supply Detec-Tion Function. Easily Achieved Switching Between The Main And Standby Power. Insurance Of Its Own Can Provide Protection To The Control Panel When The External Current Is Too High
Standby Battery: 12V/12Ah Battery *2, Work For 12 Hours Without Main Power, Work For 3 Hours Without Main Power And Alarm In The Loop. And The Battery Has Its Own Charging Function. Con-Trol Panel Is Exquisite And Beautiful.
