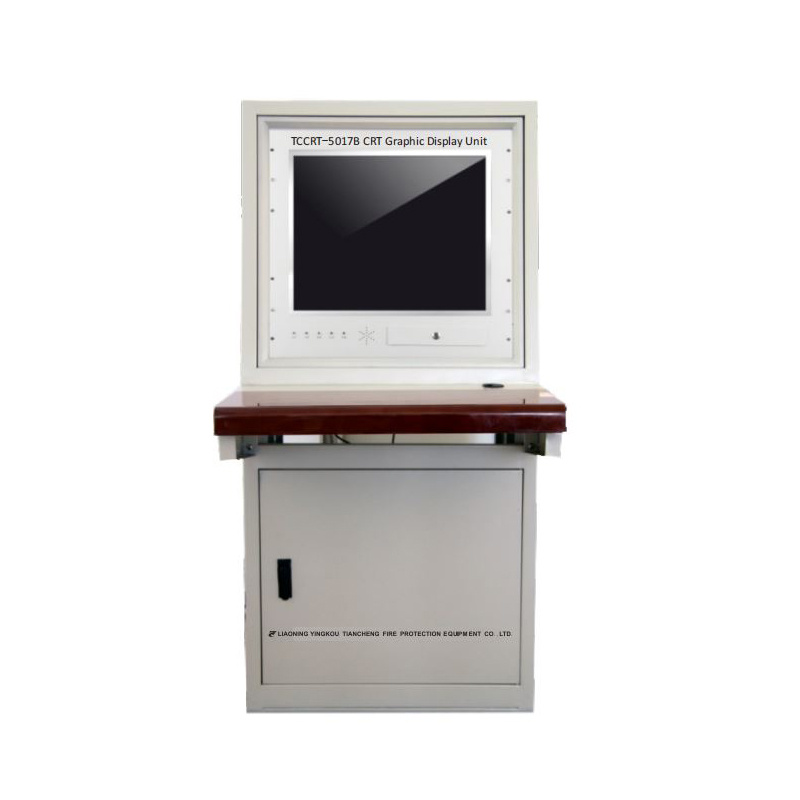

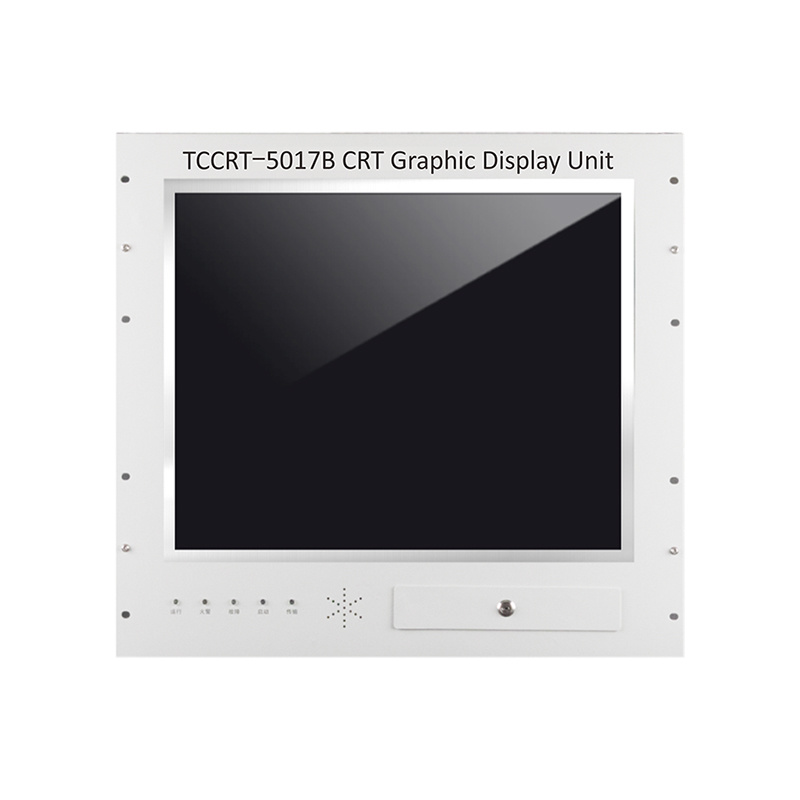

CRT Graphic Display Unit for Fire Alarm System
Transportation: Ocean ，Air ，Train
Port: Dalian
Category
Keyword
Fire Alarm System
CRT Graphic Display
- Description
-
Model No.
Place Of Origin
Voltage
Current
LED Screen
Operating Environment
Interface
Dimension (LxWxH)
Approval
：TCCRT-5017B
：China
：AC220V(AC185V~AC242V), 50Hz+1Hz
：300mA
：19 inch
：Temperature: 0°C~+40°C; Relative Humidity:≤95%
：RS232, RS485, LAN/WAN
：482mmx 183mm x444 mm
：CCCF, CE
Selling Units
：Others
* Integral of fire monitoring, information transmission and fire protection safety management
* RS232 interface is switched to RS485 interface by internal interface board, thus to be connected with TC5000 series automatic Fire Alarm Control Panel
* Display general layout, alarm plane figure and system graph with the functions of information display, duty management, evacuation indication, query, printing, etc
* Man-machine friendly, vivid and convenient operation
In traditional fire management, some information is managed in the form of paper files. Not only is the data record not comprehensive enough, but also it is difficult to consult and manage because data management is not applied. Tiancheng home safety all-wireless products are combined with the cloud platform, which can fully record and manage all the operation traces of equipment implementation. When the equipment fails, the system will automatically report it to the management party and the maintenance party, and the follow-up inspection and maintenance work will also be recorded in the whole process, so as to change the fire control work mode and further improve the fire control work management efficiency.
Smart safety comprehensive management
Tiancheng home safety wireless can comprehensively analyze the collected data of alarm host, electricity and gas fire, etc., realize the unified monitoring of the platform, and achieve the purpose of "one platform, multiple outlets, one fire and multiple support". It can grasp the situation of key areas at all times, provide effective and timely alarm, fault and operation information for users at all levels, and realize the organic combination of civil air defense and technical defense.
Collection of key safety information
Once a fire accident occurs, it can automatically identify the location of the accident, grasp the position and dynamics of the target in real time, assist relevant personnel to make scheduling decisions, and automatically schedule the display and use of the surrounding public information such as fire water source, materials, road conditions, community video surveillance and other related functions according to the location of the accident, thus providing intuitive and accurate decision-making basis for fire judgment, scheduling and handling, and realizing accurate early warning, accurate prevention, accurate disposal and accurate command of fire accidents.
Equipment self-checking function
A series of all-Tiancheng home safety and all-wireless products can provide safety officers in the community with access to resources such as micro-consumer station units and equipment. Real-time collection of alarm information and running status information of Fire Alarm controllers in networked units can realize system self-inspection, omni-directional perception and whole-process supervision of automatic alarm systems in networked units. The system can find all kinds of hidden troubles in advance, and ensure the normal operation of all facilities of the automatic alarm system.
