Product Description

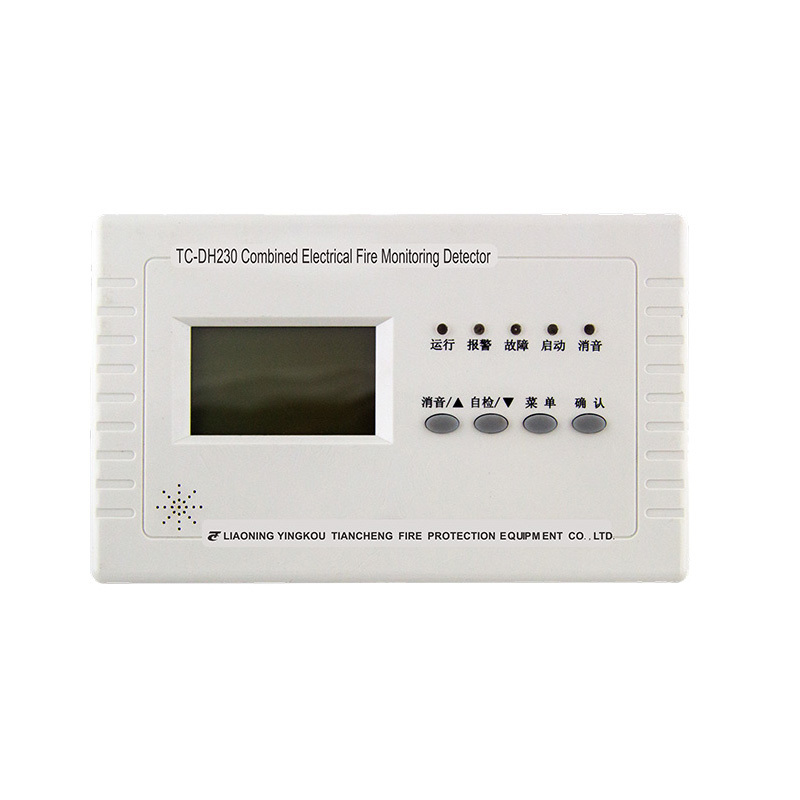

The detector can work independently or connect with JB-DH-TC5600 electrical fire monitoring equipment through two bus circuits, and realize the functions of leakage detection, temperature detection and output control. It works stably and reliably, and is connected with a variety of residual current transformers according to the magnitude of the over-line current.

* The detector and the electrical fire monitoring equipment are connected by a non-polar two-wire method. The bus technology is mature, the communication is stable and reliable, and the wiring is convenient
* Detector uses high-performance CPU, intelligent algorithm and watchdog technology, efficient and reliable operation
* Detector built-in passive output control, can be associated with one or several channels to achieve alarm linkage
* The detector has a self-test function to detect whether the detector's display device and sounder are normal
* Residual current transformer can realize alarm residual current setting from 200mA to 1000mA, wide application range and high detection accuracy; The address can be realized, which facilitates engineering debugging and maintenance
* The alarm temperature can be set from 45°C to 140°C, and the application range is wide, and the detection accuracy is high. The address code and alarm temperature are set by the detector itself to facilitate engineering debugging and maintenance
* Dimensions: 210mm × 43mm × 130mm

With the improvement of economic level, all kinds of life factors in cities are constantly changing, and all kinds of situations with high risks and hidden dangers are constantly increasing. In many places that are not within the scope specified in Code for Fire Protection Design of Buildings, there is also the demand of electrical safety monitoring, smoke monitoring, combustible gas monitoring and alarm linkage under specific circumstances and specific time. In view of this market demand, Tiancheng Group takes advantage of the "all wireless" products to provide product rental services to places that do not require fire inspection and acceptance, but have certain fire safety risks in some cases, so as to help customers quickly build and improve the fire protection system at extremely low cost and effectively meet the needs of social development with innovative services.

Short term risk scenario
Scenes such as exhibitions, open-air auto shows and temple fairs are characterized by short time, dense crowd sand concentrated risks. Once a fire breaks out, it will cause huge economic losses and even casualties. Tiancheng's all-wireless products can be leased, and safety protection equipment can be quickly deployed for such scenes at extremely low cost, and with the function of cloud platform, a "cloud" fire control room can be built to form an intelligent safety protection system, which can escort all kinds of activities in temporary scenes.

Medium-and long-term risk scenarios
Some temporary buildings of color board houses are often crowded with people, weak awareness of fire fighting and inadequate deployment of fire fighting equipment. Tiancheng all-wireless products have unique advantages, and can easily deploy alarm products such as electricity, smoke and combustible gas without deploying signals and power lines, effectively avoiding major loss of life and property. Unique leasing mode can further reduce the comprehensive cost of users.

Risk surge scenario
In renovation and reconstruction projects, there are many risk factors in some irregular construction, such as smoking, electric welding, using open flame, and damaging flammable gas pipelines, which are common phenomena and easily lead to fire accidents. At the same time, the power failure and network disconnection caused by construction will also make the original Fire Alarm equipment unable to work normally. Tiancheng Group can provide equipment rental services for such scenes, and all wireless products have their own batteries, which need not be connected to the power supply. At the same time, external communication is completed through the 2G/4G network, which solves the network limitation.
