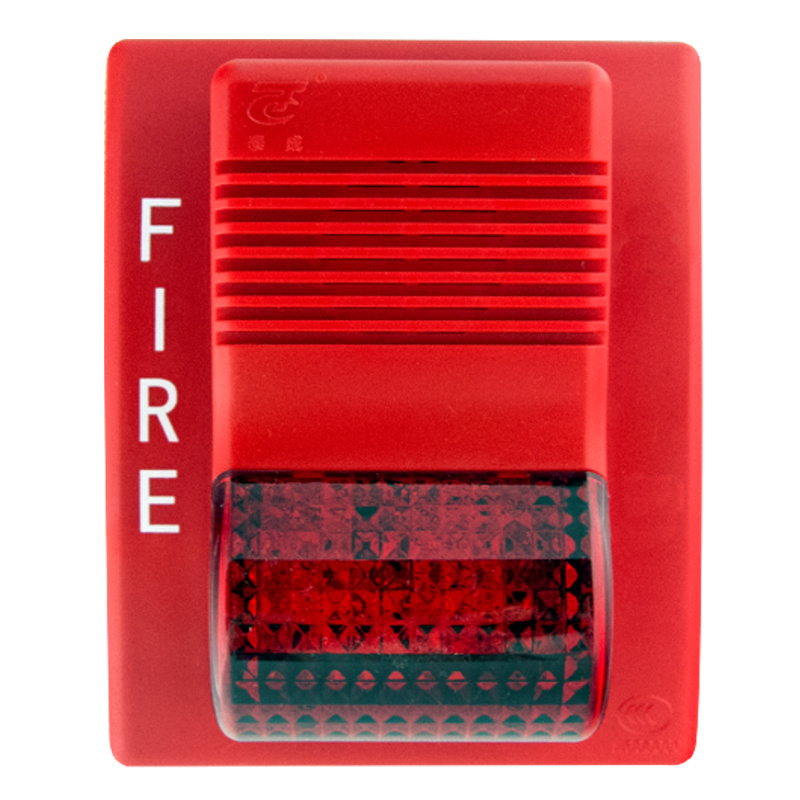

TCSG5228F Conventional Sounder Strobe
Transportation: Ocean ，Air ，Train
Port: Dalian
Category
Keyword
Conventional Sounder Strobe
- Description
-
Model No.
Place Of Origin：TCSG5228F
：ChinaSelling Units
：Others
TCSG5228F Conventional Sounder Strobe adopts 2 wires (24V power). It is mainly installed in public places. It generates a kind of optical and visual alarm used to warn people in field when fire occurs.
With plug-in structure, reliable performance, simple and easy installation, attractive appearance, it has high reliability and good anti-interference functions.
It connects to the Fire Alarm Control Panel by using an addressable linkage control module.
Features
1. DC24V power two-wire, non-polarized.
2. After activated, it will generate strong audible and visual alarm signal.
3. Attractive appearance, convenient and reliable installation.
Technical Specifications
1. Operating voltage
Power bus voltage: DC24V Range allowed: DC19V～DC28V
2. Operating current
Power action current≤50mA
3. Operating environment
Temperature: -10°C～+50°C
Relative Humidity: ≤95 %( 40±2 °C)
Indoor (Non-residential)
4. Dimension
140mm×115mm×55.3mm (L×W×H)
5. Alarm voice: 80dB~115dB (A weighted)
6. Flashing frequency: 1Hz～2Hz
7. Cycle of changing level tone: 3.5S～4.5S
8. Weight: 200g
9. Standard: GB 26851-2011
Appearance: The control panel adopts Akzo anti-corrosion coating. No pun-gent smell, anti-static electricity, non-toxic harm, non-pollution, no waste. The cabinet is made of stainless steel, which is not easy to deform and high-end and elegance
The Control Panel Is Equipped With A Fire Alarm And A Fault Output Port. The Output Of 24V In Case Of Fire Al Arm And Fault Effectively Provides A Convenient Way For External Device
Power Box: Equipped With Main Power Supply Detec-Tion Function. Easily Achieved Switching Between The Main And Standby Power. Insurance Of Its Own Can Provide Protection To The Control Panel When The External Current Is Too High
Standby Battery: 12V/12Ah Battery *2, Work For 12 Hours Without Main Power, Work For 3 Hours Without Main Power And Alarm In The Loop. And The Battery Has Its Own Charging Function. Con-Trol Panel Is Exquisite And Beautiful.
