TCXH5215 Fire Hydrant Button
Transportation: Ocean ，Air ，Train
Port: Dalian
Category
Keyword
Fire Hydrant Button
- Description
-
Model No.
Place Of Origin：TCXH5215
：ChinaSelling Units
：Others

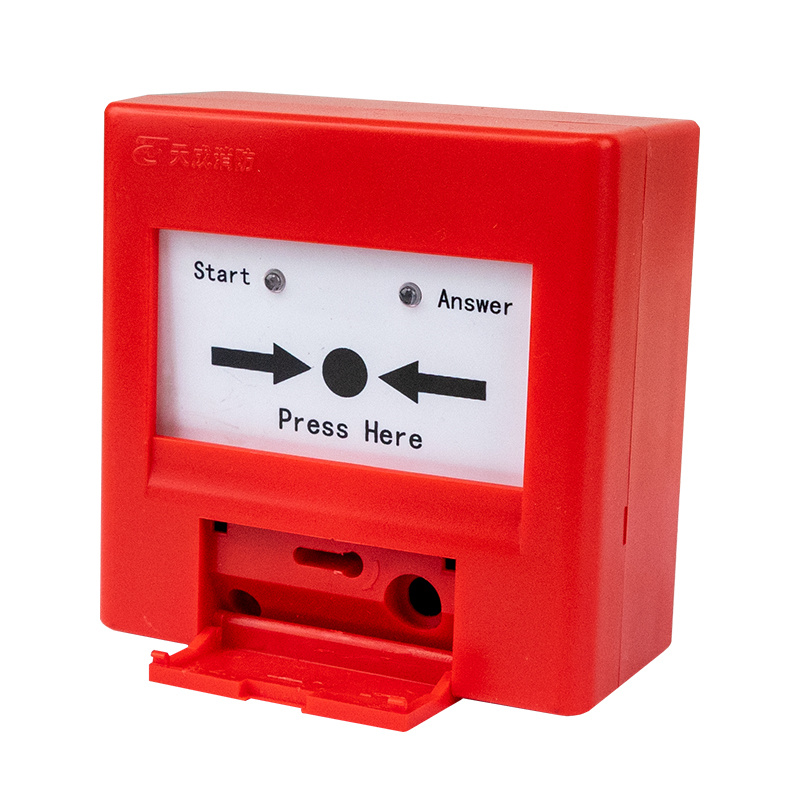

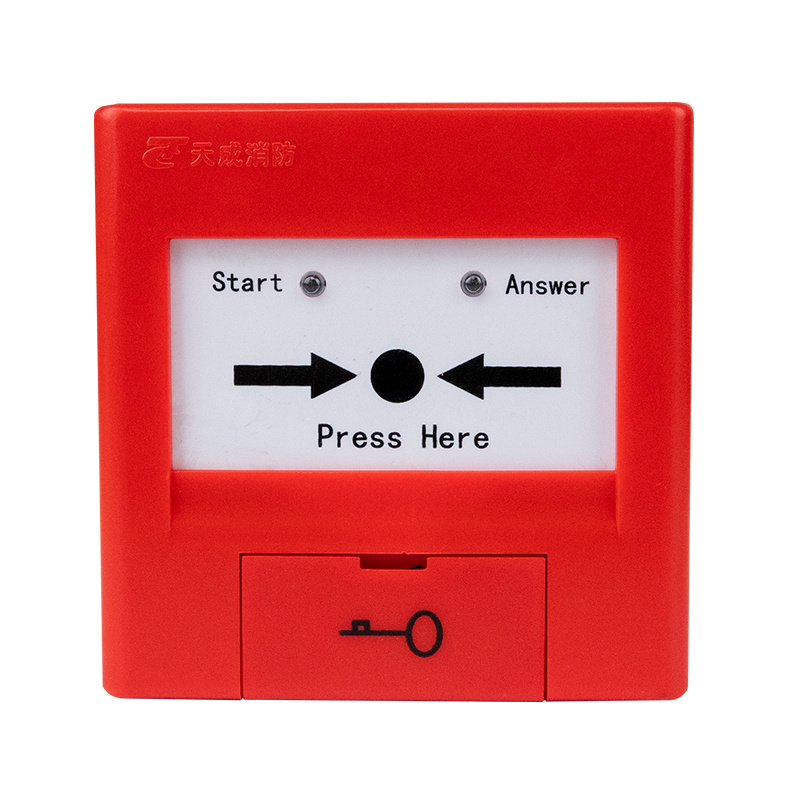

TCXH5215 Addressable Fire Hydrant Button (the button) is installed in public places. When there is a fire, pressing the frangible element on the button can send startup signal to the Fire Alarm Control Panel and fire pump is activated. After receiving the startup signal, the control panel will show address information of the button and generate alarm sound. After the fire pump is activated, the feedback LED of the button is on.
* Suitable for the installation in explosive gas environment with IIC class and temperature group T6
* Simple and convenient installation with plug-in structure design
* The button on the alarm button can be reset by special tool after pressing
* Explosion-proof mark: Exib IIC T6
* Protection level: IP20Features
1. Plug-in structure. Simple and convenient installation.
2. Alarm by pressing, reset by a special key.
3. Microprocessor controls devices; digital signal communicates the Fire Alarm control panel. Stable and reliable work, good ability to inhibit electromagnetic interference.
4. Electronically addressed. The address can be modified in field. Easy and reliable for commissioning.
Technical Specifications
1. Operating voltage
Signal bus voltage: loop 24V2. Operating current
Standby current: ≤ 0.2mA
Action current: ≤ 1.5mA3. Type of Initiating Part：Reusable
4. Initiating Mode：Pressing the frangible element manually

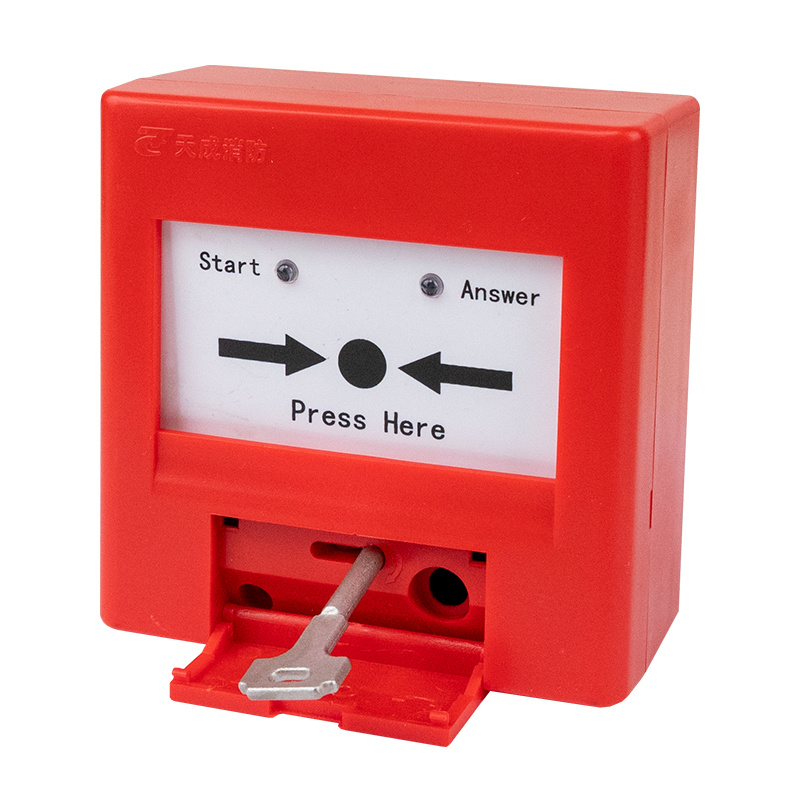

5. Resuming Mode：Manually resumed by a special key
6. Indicator
Active LED: Red. Flashes every 3s normally. Illuminates after activated.
Feedback LED: Green. After fire pump is activated, the LED is on.7. Programming mode
Electronically addressed (address range: one address within 1~255).8. Wiring: 2-wire/6-wire
9. Operating environment
Class: indoor
Temperature: -10°C～+55°C
Relative Humidity: ≤95%, non-condensing10.Dimension
90mm×90mm×42 mm (with base)11. Material and color of enclosure: ABS; red
12. Weight: about 120g(with base)
13. Mounting hole distance: 60mm
14. Standard: GB 16806-2005Appearance: The control panel adopts Akzo anti-corrosion coating. No pun-gent smell, anti-static electricity, non-toxic harm, non-pollution, no waste. The cabinet is made of stainless steel, which is not easy to deform and high-end and elegance
The Control Panel Is Equipped With A Fire Alarm And A Fault Output Port. The Output Of 24V In Case Of Fire Al Arm And Fault Effectively Provides A Convenient Way For External Device
Power Box: Equipped With Main Power Supply Detec-Tion Function. Easily Achieved Switching Between The Main And Standby Power. Insurance Of Its Own Can Provide Protection To The Control Panel When The External Current Is Too High
Standby Battery: 12V/12Ah Battery *2, Work For 12 Hours Without Main Power, Work For 3 Hours Without Main Power And Alarm In The Loop. And The Battery Has Its Own Charging Function. Con-Trol Panel Is Exquisite And Beautiful.
