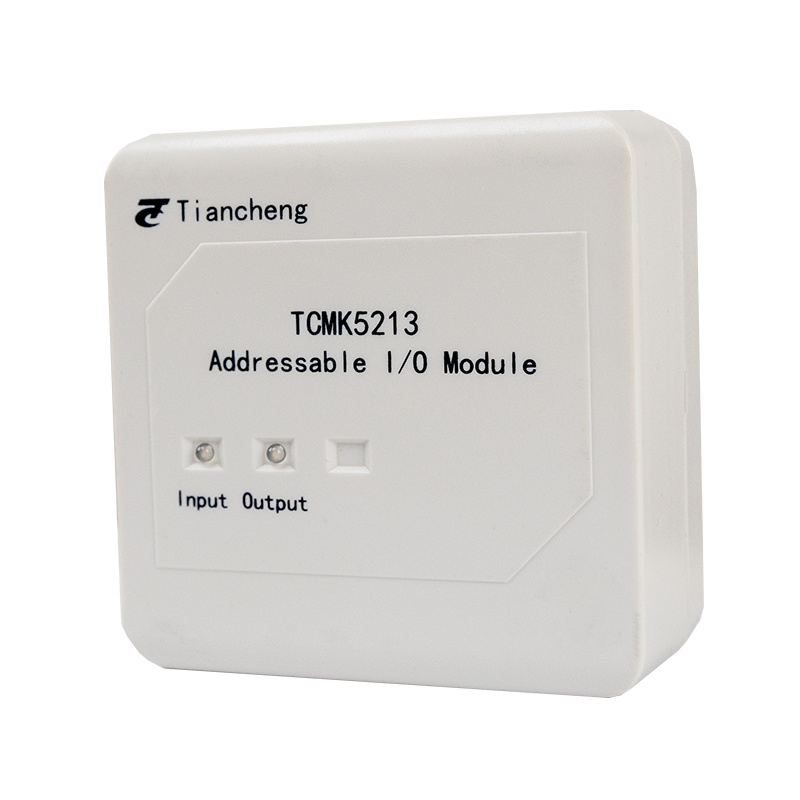

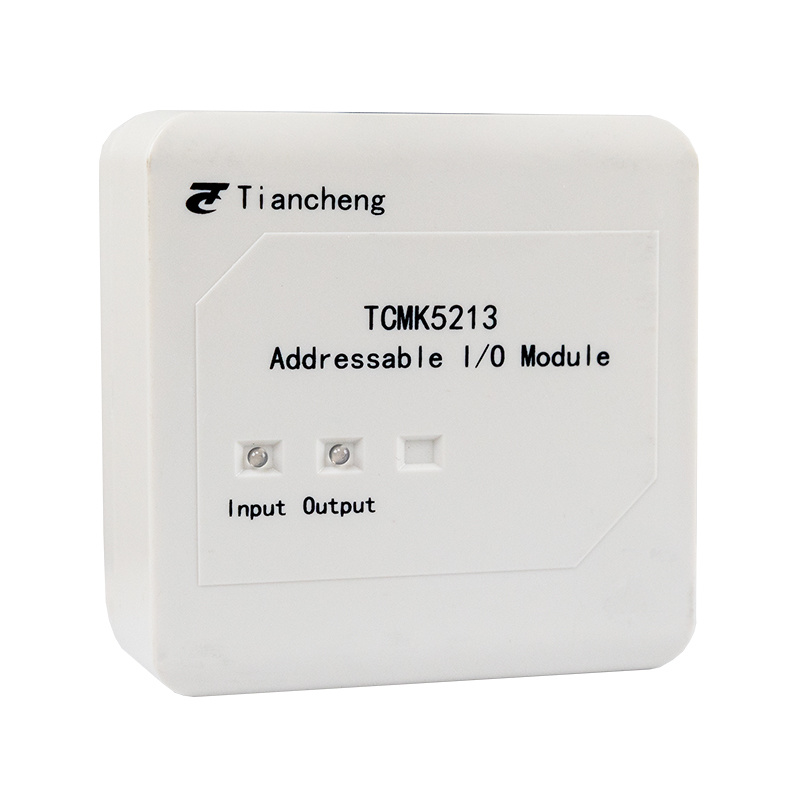

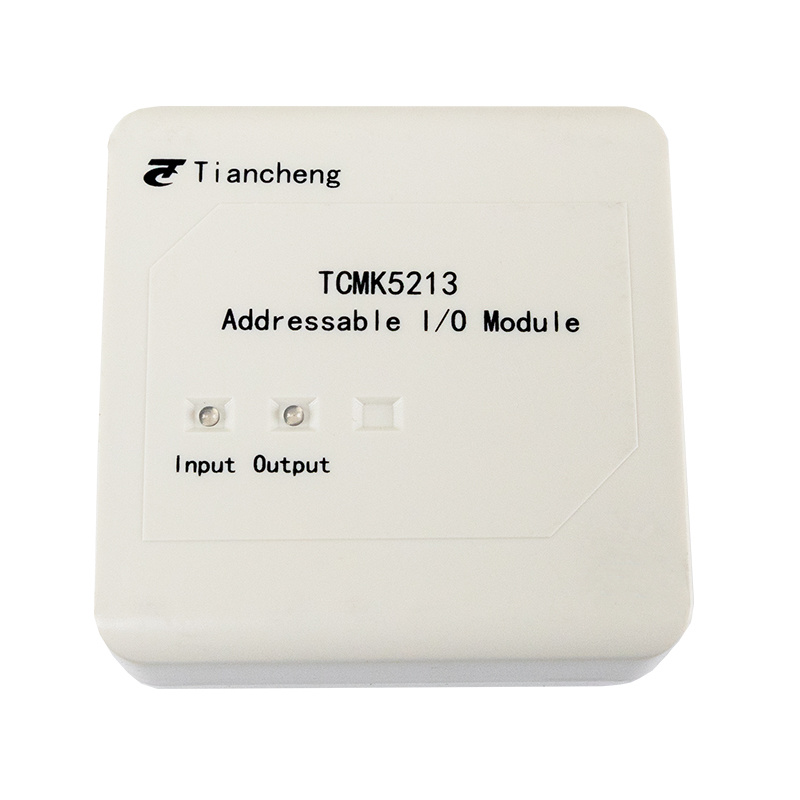

TCMK5213 Addressable Single I/O Module
Transportation: Ocean ，Air ，Train
Port: Dalian
Category
Keyword
Addressable Single I/O Module
- Description
-
Model No.
Place Of Origin：TCMK5213
：ChinaSelling Units
：Others
It is mainly used to connect fire-protection linkage equipment that needs to be controlled by Fire Alarm Control Panel, such as smoke exhaust valve, air supply valve, fire damper, etc., and can receive the action response signal of the equipment.
Voltage：Loop:DC24V (16V～28V);Power: DC24V (20V～28V)
Standby Current：Loop: ≤0.2mA;Power: ≤2mA
Action Current：Loop: ≤2mA;Power: ≤22mA
Operating Environment：Temperature: -10°C～+55°C;Relative Humidity: ≤95%, non-condensing
Mounting Hole Distance：60mm
Dimension (L×W×H)：86mm×38mm×86mm (with base)
Working Mode：Match with JB-TG-TC5000, JB-LT-TC5200, JB-TB-TC5100, JB-TB-TC5120,JB-QB-TC5160
Approval：CCCF, CE
Appearance: The control panel adopts Akzo anti-corrosion coating. No pun-gent smell, anti-static electricity, non-toxic harm, non-pollution, no waste. The cabinet is made of stainless steel, which is not easy to deform and high-end and elegance
The Control Panel Is Equipped With A Fire Alarm And A Fault Output Port. The Output Of 24V In Case Of Fire Al Arm And Fault Effectively Provides A Convenient Way For External Device
Power Box: Equipped With Main Power Supply Detec-Tion Function. Easily Achieved Switching Between The Main And Standby Power. Insurance Of Its Own Can Provide Protection To The Control Panel When The External Current Is Too High
Standby Battery: 12V/12Ah Battery *2, Work For 12 Hours Without Main Power, Work For 3 Hours Without Main Power And Alarm In The Loop. And The Battery Has Its Own Charging Function. Con-Trol Panel Is Exquisite And Beautiful.
