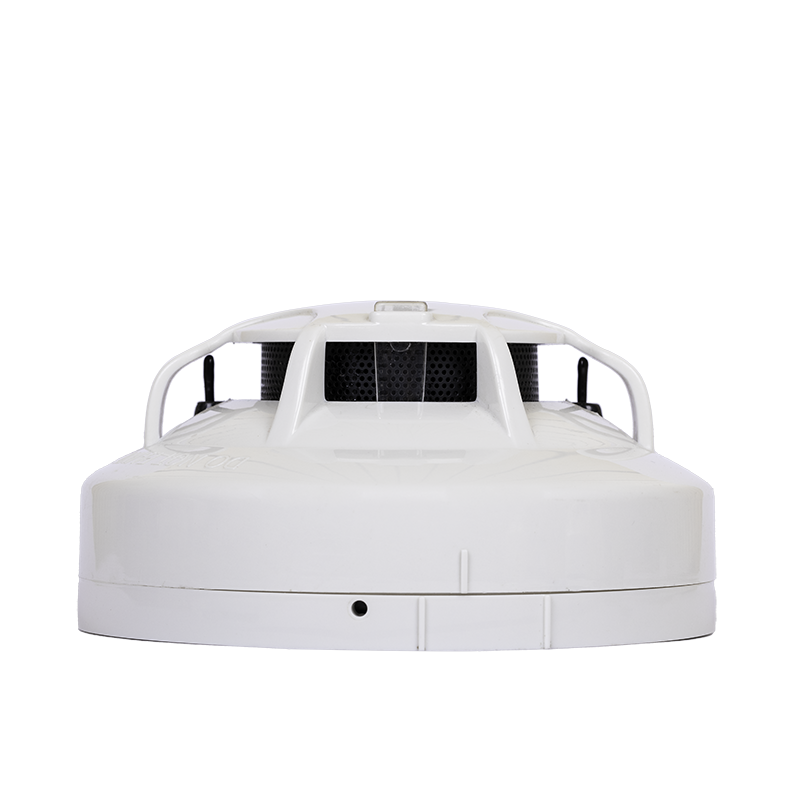

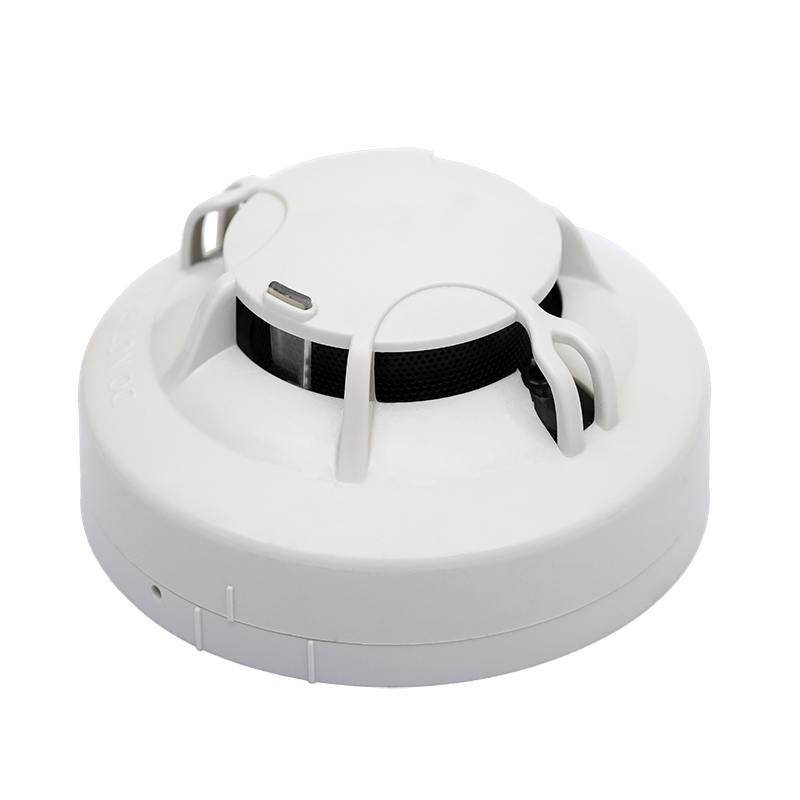

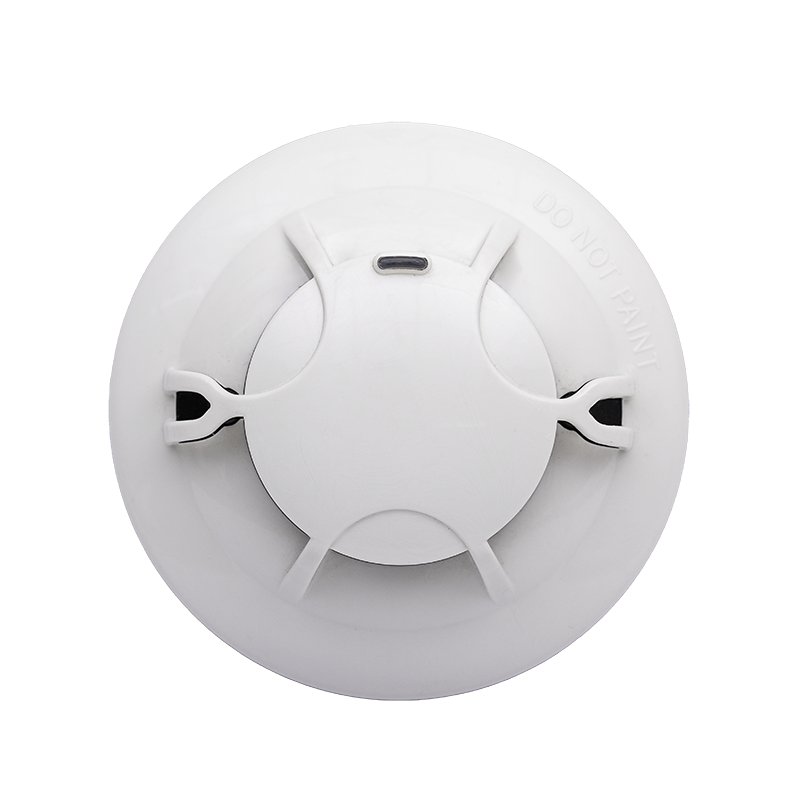

TF-GOM-TC5103Intelligent Combination Heat and Smoke Detector
Transportation: Ocean ，Air ，Train
Port: Dalian
Category
Keyword
Smoke Detector
Intelligent Combination Heat
- Description
-
Model No.
Place Of Origin
Voltage：Loop
Current：Standby Current
Operating Environment Temperature
Ingress Protection Rating
Dimension
Mounting Hole DistanceApproval
：TF-GOM-TC5103
：China
：DC24V(16V～28V)
：≤0.3mA; Alarm Current: ≤0.9mA
：-10°C ~ +50°C; Relative Humidity: ≤90% non-condensing
：IP 23
：100mm×50mm (with base)
：60mm：CCCF, CE
Selling Units
：Others
Intelligent Combination Heat Photoelectric Smoke Detector is composed of smoke sensor and semiconductor temperature sensor in terms of process structure and circuit structure.
* Multiple combined detector consisted of smoke sensor and semiconductor temperature sensor, with the performance of photoelectric smoke detector and rate of rise&fixed temperature heat detector
* Wiring: non-polarized two bus system
* Coding: electronically coding
* Dimension: diameter: 100mm, height: 51mm (with base)
Appearance: The control panel adopts Akzo anti-corrosion coating. No pun-gent smell, anti-static electricity, non-toxic harm, non-pollution, no waste. The cabinet is made of stainless steel, which is not easy to deform and high-end and elegance
The Control Panel Is Equipped With A Fire Alarm And A Fault Output Port. The Output Of 24V In Case Of Fire Al Arm And Fault Effectively Provides A Convenient Way For External Device
Power Box: Equipped With Main Power Supply Detec-Tion Function. Easily Achieved Switching Between The Main And Standby Power. Insurance Of Its Own Can Provide Protection To The Control Panel When The External Current Is Too High
Standby Battery: 12V/12Ah Battery *2, Work For 12 Hours Without Main Power, Work For 3 Hours Without Main Power And Alarm In The Loop. And The Battery Has Its Own Charging Function. Con-Trol Panel Is Exquisite And Beautiful.
